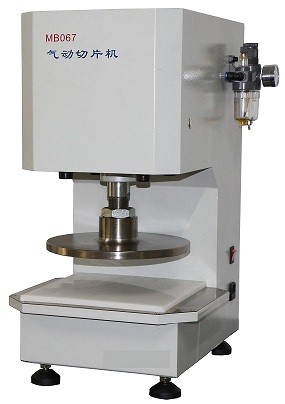

MB067 Pneumatic Sample Cutter
Product Description
Application Scope
It is designed for sampling and cutting of wool, cotton, chemical fiber, knitted fabric, leather and rubber etc.
Parameters
1. Top Plate Diameter: 185mm
2. Max Sample Dimension: 125x125mm
3. Max Sample Thickness: 50mm
4. Air-Pressure: ~4kg/cm2
5. Die-Cut Tools Are On-the-shelf:
Round-shape: OD 38mm
Round-shape: OD 140mm
Rectangle: 40x100mm
Rectangle: 50×150mm
Other size of tools can be customized.
6. Device Dimension: 44×37×65cm
Package Dimension:59×49×81cm
7. Net Weight: 65KGS
Gross Weight: 77KGS
Information or Purchase
To get more information about our product or to order from our product, contact us: order@ortekstil.com
